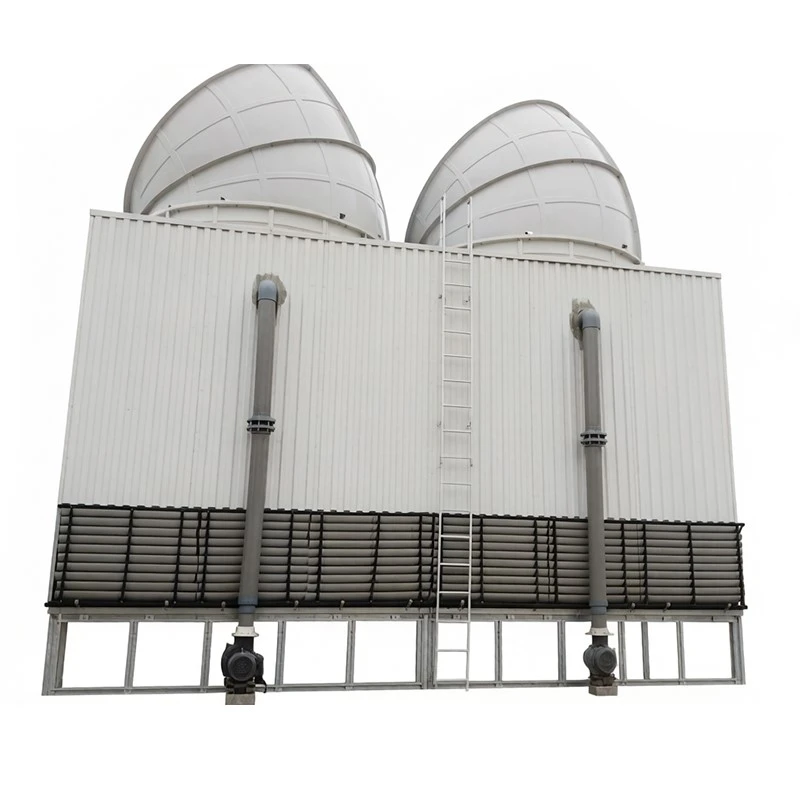

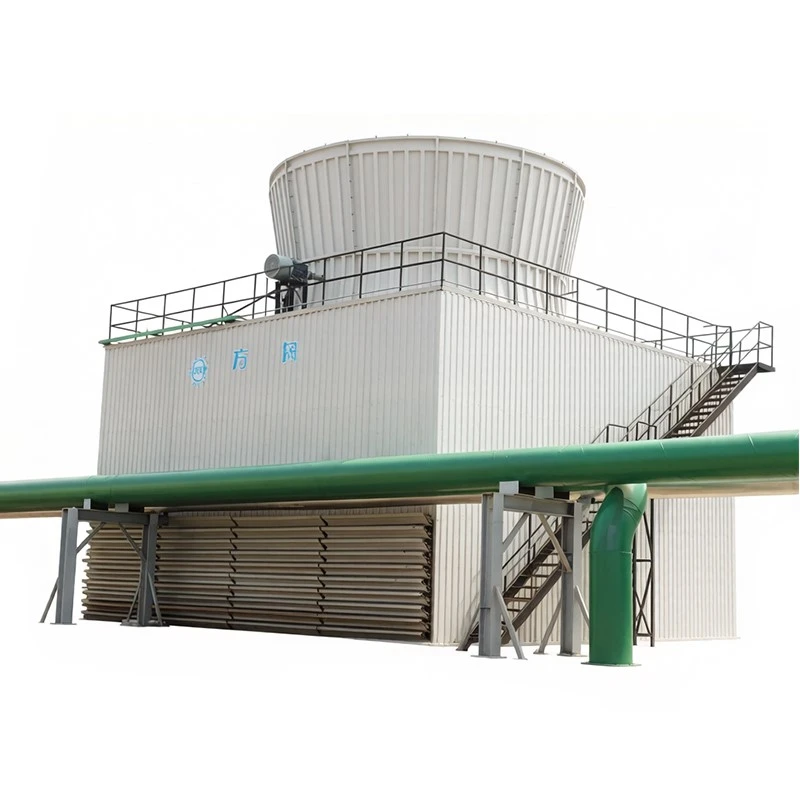

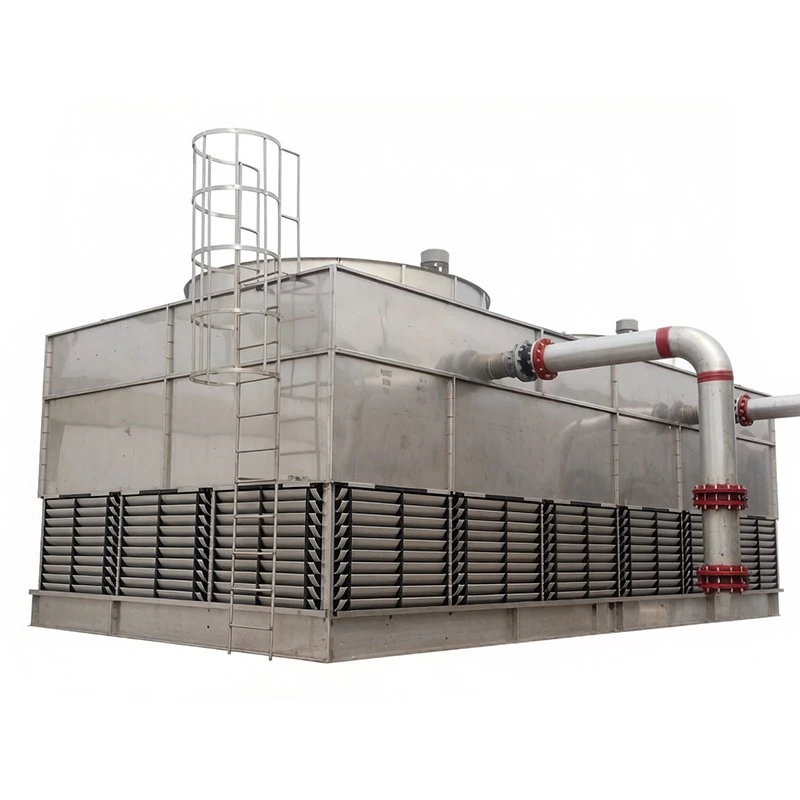

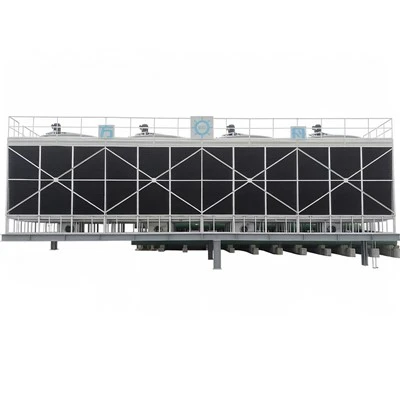

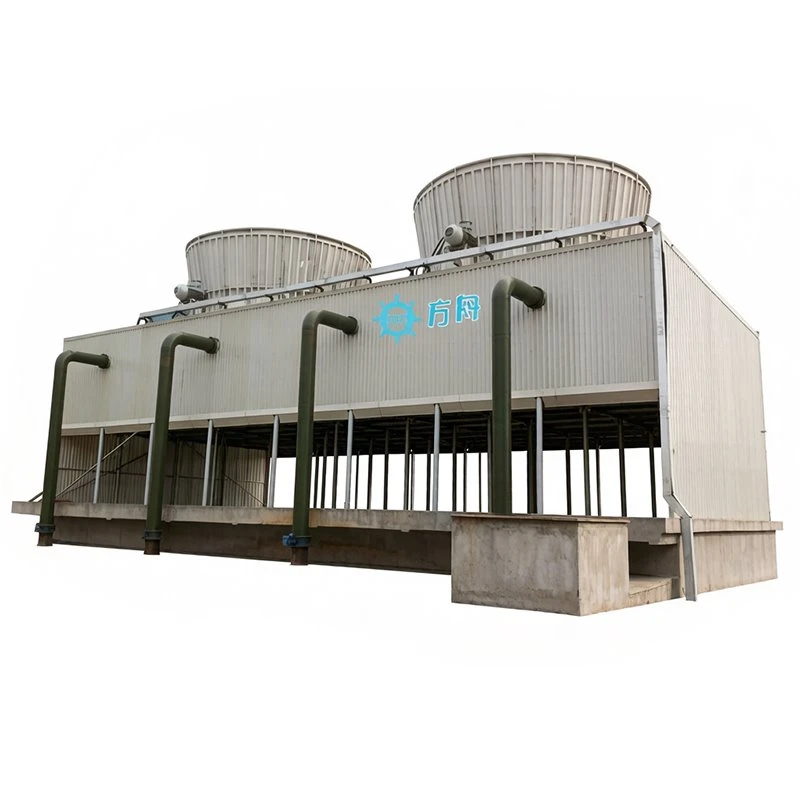

Industrial Open Cooling Tower
Dej txias ntws: 36-6,000 m³ / h
Qhov Loj (L × W × H): 1.48 m × 3.06 m × 2.878 m
Max Qhov Loj: 21.6 m × 20 m × 6.6 m
Ntxuam Dia: 1.2–10.36 m
Lub zog kiv cua: 1.1-250 kW
Cua Flow Range: 26,200–4,200,000 m³ / h
Ua rau qias neeg thiab kub muaj xwm txheej
Peb Lub Tuam Txhab Lag Luam Qhib Txias yog tsim los rau cov chaw lag luam hnyav xws li hlau, tshuaj, hluav taws xob, thiab cov cement cog. Nws tswj cov dej nyuaj, hloov kub ceev, thiab qhov rais kaw tsawg kawg nkaus.
- Dej ntws: 36-6,000 m³ / h
- Haum rau tus qauv AC (37℃/ 32 degree), nruab nrab kub (43℃/ 33 degree), thiab kub kub (60℃/ 35 degree)
- Nqa dej nrog txog 500 mg / L tshem tawm cov khib nyiab (ib txwm xav tau<200 mg/L)
Lub pej thuam ua haujlwm nyob rau hauv cov xwm txheej hnyav, txo cov lim dej thiab txo cov nqi tu.
Kev Tsim Kho Kom Zoo Rau Lub Neej Ntev
- Sau thickness: 0.28 hli (PVC) los yog yeem PP / Stainless Hlau rau huab cua txias
- Ntxuam hniav: Aluminium los yog FRP, corrosion{0}}resistant
- Tsav: Iav tsav (tsis muaj txoj siv sia) rau kev ua haujlwm tas mus li hauv qhov chaw muaj plua plav
- Ntxuam txoj kab uas hla: 1.2-10.36 m, lub zog: 1.1-250 kW, airflow: 26,200-4,200,000 m³ / h
- Drift eliminator: maze style, drift poob <0.001% (15 × zoo dua li lub teb chaws tus qauv)
Qhov no ua kom cov dej poob qis, txhim khu kev qha txias, thiab cov neeg nyob ze- ua haujlwm zoo.
Kev ntseeg siab los ntawm Cov Neeg Siv Khoom Loj
Peb cov yees siv los ntawm Shandong Weiqiao Aluminium, Xinjiang East Hope, Inner Mongolia Huineng Coal Chemical, Sinopec, Baotou Aluminium, thiab Nanshan Aluminium.
Peb lub Hoobkas nta plasma cutters, CNC brakes, hydraulic presses, thiab yob yav dhau los. Xyoo 2024, peb tau ntxiv 9 cov kab ntau lawm. Txhua chav dhau CTI, ASME, thiab CQC ntawv pov thawj, nrog 100% kev kuaj xyuas zoo. Koj tuaj yeem tshawb xyuas koj tus pej thuam ntawm - qhov chaw lossis hauv video ua ntej xa khoom.
Khoom Specifications
|
Parameter |
Paub meej |
|
Dej Txias Dej |
36–6,000 m³/h |
|
Yam tsawg kawg nkaus (L × W × H) |
1.48 m × 3.06 m × 2.878 m |
|
Max Dimensions |
21.6 m × 20 m × 6.6 m |
|
Ntxuam Dia |
1.2–10.36 m |
|
Ntxuam Fais |
1.1-250 kW |
|
Cua Flow Range |
26,200–4,200,000 m³/h |
|
Tshuaj tsuag |
2.2-65 kW × 2 |
|
Cov yeeb nkab loj |
DN80 × 2 rau DN600 × 3 |
|
Qhov hnyav ua haujlwm |
2,694–162,000 kg |
|
Sau Thickness |
0.28 hli (PVC) los yog PP / Stainless |
|
Motor Options |
Kev tawg- pov thawj, VFD, Cov hlau nplaum ruaj khov |
|
Tsav hom |
Gear drive (tsis muaj txoj siv sia) |
