Tuam Tshoj Txias Ntauwd Accessories Chaw tsim tshuaj paus Chaw tsim tshuaj paus - Customized Service

Txias Ntauwd Cua Inlet Louvers

Lub kaum ntse ntse: 30-45 degree
Hniav nrug: 25-50 mm
Cua Ceev (tsim): 2.5 m / s
Kev poob siab: Tsawg dua lossis sib npaug li 15 Pa
Splash Block Rate: >99.99%
Dej khiav tawm tus...

Ntxiv rau Kev Nug
Txias Ntauwd Ntxuam Stacks

Txoj kab uas hla: 600mm txog 5,000mm
Khoom siv: FRP, Galvanized hlau, Stainless hlau
FRP Luj: ~ 1/3 ntawm steel
Kev Ua Tau Zoo: 8-12%
Lub cev muaj zog txuag: 8-12%
Tawm lub kaum sab...

Ntxiv rau Kev Nug

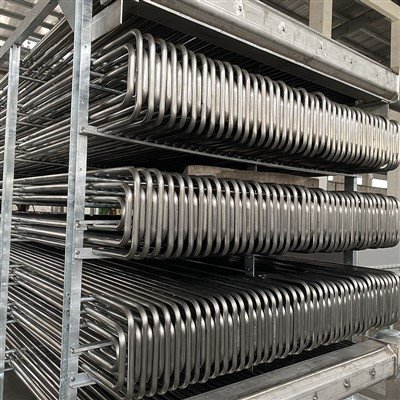

Txias Ntauwd Coils

Tube cov ntaub ntawv: T2 tooj liab, 304/316L Stainless hlau, Galvanized hlau
Tube Loj (OD): 15.88mm, 19.05mm, 25.4mm
Phab ntsa Thickness: 1.0-2.5 hli
Tsim Siab: 1.6-2.5 MPa
Burst...

Ntxiv rau Kev Nug
Txias Ntauwd Gearbox

Lub Zog: 1.5-315 kW
Kev sib piv ceev: 4: 1-20: 1
Axial Load Capacity: Mus txog 50 kN
Hom iav: Bevel (txoj cai-angle), Helical (parallel)
Gear Hardness: HRC58-62
Bearing L10 Lub...

Ntxiv rau Kev Nug

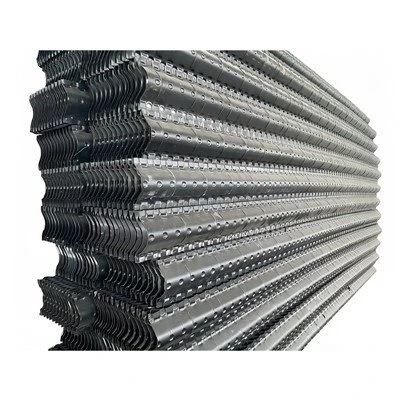

Eliminator Txias Ntauwd

Dej Catch Rate: 99.5-99.9%
Kev poob qis: 0.0005-0.002%
National Standard Drift: 0.015%
Module Loj: 500 × 500 mm lossis 1000 × 500 mm
Huab cua ceev: 2.5-4.5 m / s
Siab poob: 10-35 Pa...

Ntxiv rau Kev Nug

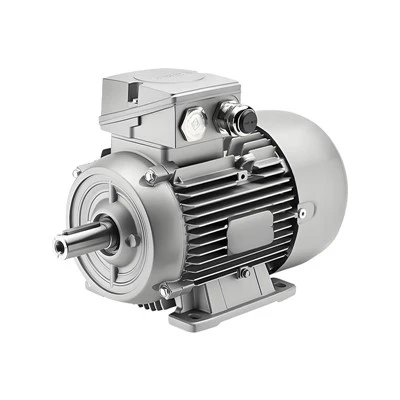

Direct Tsav Txias Ntauwd Ntxuam Tsav

Lub Zog: 0.55-315 kW
Loj: 4, 6, 8
Kev tiv thaiv: IP55 lossis IP56
Rwb thaiv tsev: Class F (Class H yeem)
Efficiency: IE3, IE4, IE5
Kev txuag hluav taws xob (IE4 vs IE3): 3-8%

Ntxiv rau Kev Nug
Cooling Tower Dej Distribution Nozzles

Uniformity: Ntau dua lossis sib npaug li 92%
Siab Siab: 0.03-0.25 MPa
Flow ib Nozzle: 1-20 m³ / h
Poob Loj: 1.5-4 mm
Spray Radius: 0.5-1.5 m
Nozzle hom: Kauv, Lub Hom Phiaj, Rotary,...

Ntxiv rau Kev Nug

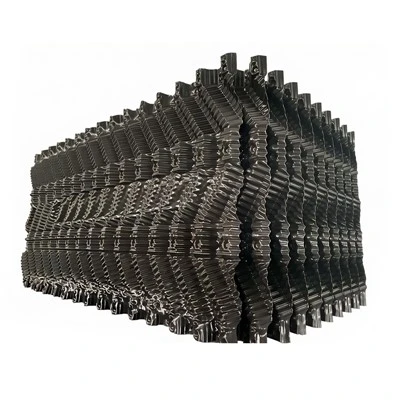

PVC Txias Ntauwd Sau

Thaj Chaw: 110-200 m² / m³
Qhov Loj: 14mm, 19mm, 24mm, 30mm
Khoom siv: PVC (txog 55 degree), PP (txog 70 degree), CPVC (txog 90 degree), PVDF (acidic dej)
Phaj Thickness: 0.30-0.45mm...

Ntxiv rau Kev Nug

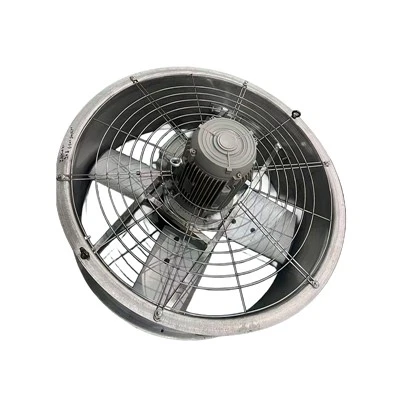

Tsis tshua muaj suab nrov Cooling Ntauwd Ntxuam

Ntxuam Dia: 600mm - 6,000mm
Ntxuam Efficiency: 78-85%
Hniav Khoom: Aluminium los yog FRP
Kev Kho Hniav: ± 3 degree
Ntsis Ceev: 50-65 m / s
Qib suab: Tsawg dua lossis sib npaug li 32...

Ntxiv rau Kev Nug

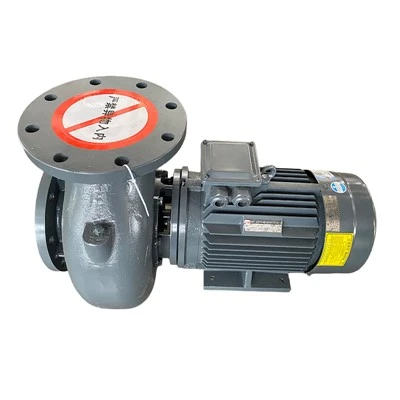

Txias Ntauwd Circulation Pump

Dej ntws ntws: 5-1,200 m³ / h
Lub taub hau siab: 12-50 m
Kev Ua Tau Zoo: 5-8% dhau ntawm cov twj tso kua mis
NPSH: 2.5-4.0 m
Hom Foob: SiC-SiC nrog Hastelloy C-276 caij nplooj ntoos...

Ntxiv rau Kev Nug
