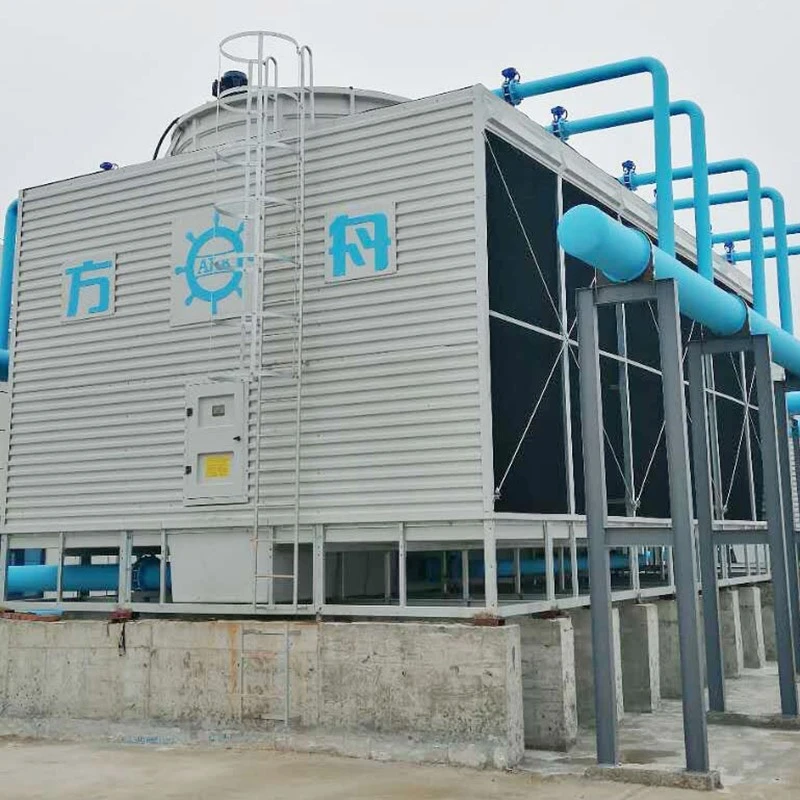

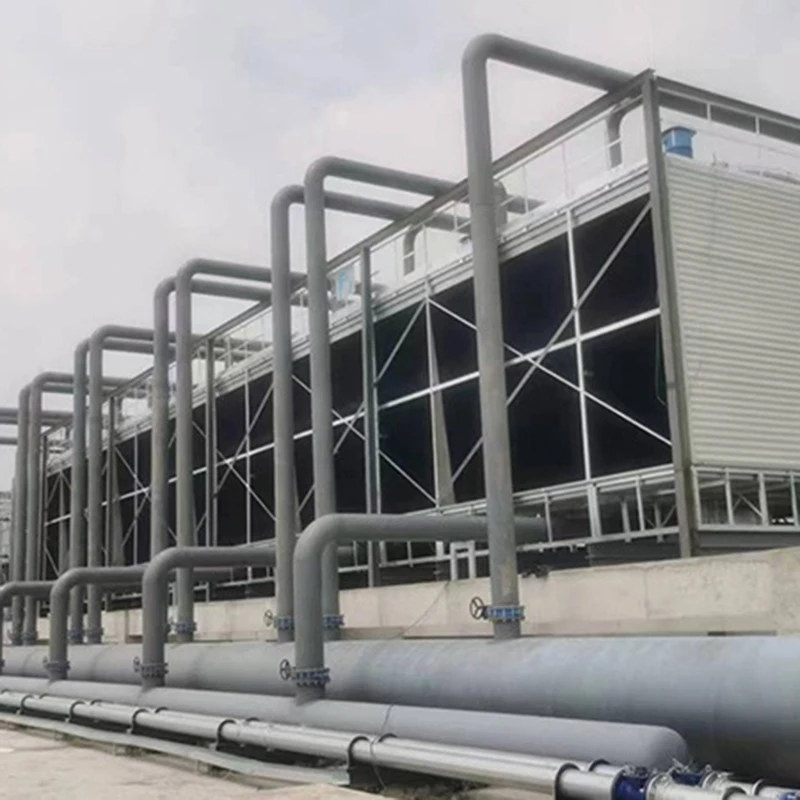

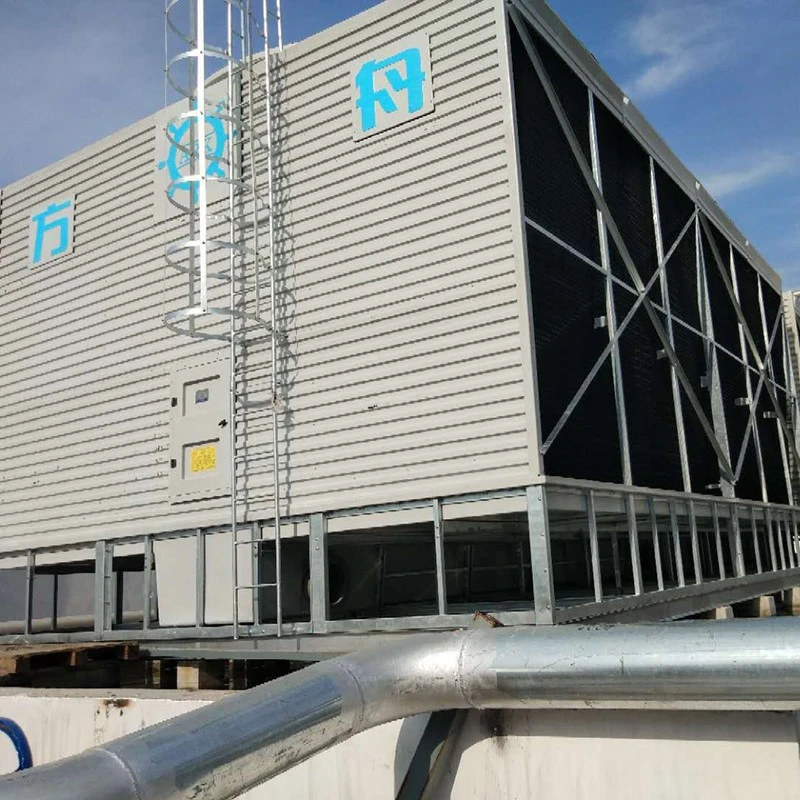

Txias Ntauwd Qhib Loop
Dej txias ntws: 36-6,000 m³ / h
Qhov Loj (L × W × H): 1.48 m × 3.06 m × 2.878 m
Max Qhov Loj: 21.6 m × 20 m × 6.6 m
Ntxuam Dia: 1.2–10.36 m
Lub zog kiv cua: 1.1-250 kW
Cua Flow Range: 26,200–4,200,000 m³ / h
Tsawg Resistance Design rau Retrofit Projects
Peb Lub Txias Ntauwd Qhib Loop yog qhov zoo tagnrho rau cov ntawv thov retrofit qhov twg cov twj tso kua mis yuav tsis muaj zog lossis cov yeeb nkab khiav ntev. Tus qauv yees feem ntau xav tau lub twj tso kua mis siab; tus pej thuam no ua haujlwm nrog cov tshuaj tsuag tsis tshua muaj siab (0.2-0.3 MPa) ua tsaug rau cov kav dej loj dua thiab tsim kom zoo dua nozzle. Nws ua haujlwm rau cov cua kub nruab nrab (43℃/ 33 degree) thiab kub siab (60℃/ 35 degree) daim ntawv thov, nrog dej ntws los ntawm 36 m³ / h txog 6,000 m³ / h.
Lub kaw lus txo qhov kev tiv thaiv los ntawm 15% piv rau cov qauv yees, yog li cov twj uas twb muaj lawm tuaj yeem ua tau zoo -txuag koj tus nqi ntawm lub twj tso kua mis tshiab.
Kev tsim kho muaj zog thoob plaws qhov ntau
Qhov ntev thiab qhov hnyav phim peb cov qauv qhib ntauwd kab. Yam tsawg kawg nkaus: 1.48 m × 3.06 m × 2.878 m; Qhov siab tshaj plaws: 21.6 m × 20 m × 6.6 m. Ntxuam diameters ntawm 1.2 m txog 10.36 m nrog lub zog ntawm 1.1 kW txog 250 kW, xa cov cua ntws ntawm 26,200 m³ / h txog 4,200,000 m³ / h.
Cov khoom siv lub cev muaj xws li FRP, stainless hlau, thiab Galvalume, xaiv raws li dej zoo. Lub taub hau tshuaj tsuag raug kaw kom ruaj ntseg, thiab cov dej xa tawm thoob plaws ntau qhov chaw sib txawv yog qhov sib xws, nrog tsawg dua 3% kev hloov pauv.
Transparent Production thiab Comprehensive Service
Peb khaws koj cov ntaub ntawv thaum lub sijhawm tsim khoom nrog cov duab, yeeb yaj kiab, thiab cov rooj ua haujlwm. Standard units tau ua tiav nyob rau hauv kwv yees li 20 hnub; kev cai units xav tau ntev dua. Ua ntej- cov sijhawm tsim khoom tau pom zoo ua ntej pib.
Tom qab xa khoom, peb muab kev pabcuam tag nrho nrog rau kev cob qhia, muaj cov khoom seem, thiab kev saib xyuas cov chaw taws teeb. Cov lus ceeb toom ntxov tso cai rau koj los tiv thaiv cov teeb meem ua ntej lawv tshwm sim, ua kom muaj kev ua haujlwm tsis tu ncua thiab kev thaj yeeb ntawm lub siab.
Khoom Specifications
|
Parameter |
Paub meej |
|
Dej Txias Dej |
36–6,000 m³/h |
|
Yam tsawg kawg nkaus (L × W × H) |
1.48 m × 3.06 m × 2.878 m |
|
Max Dimensions |
21.6 m × 20 m × 6.6 m |
|
Ntxuam Dia |
1.2–10.36 m |
|
Ntxuam Fais |
1.1-250 kW |
|
Cua Flow Range |
26,200–4,200,000 m³/h |
|
Tshuaj tsuag |
2.2-65 kW × 2 |
|
Cov yeeb nkab loj |
DN80 × 2 rau DN600 × 3 |
|
Qhov hnyav ua haujlwm |
2,694–162,000 kg |
|
Txau Siab |
0.2-0.3MPa |
|
Flow Range Muaj peev xwm |
60% -130% ntawm kev tsim |
|
Cov khoom xaiv |
FRP, Stainless hlau, Galvalume |
