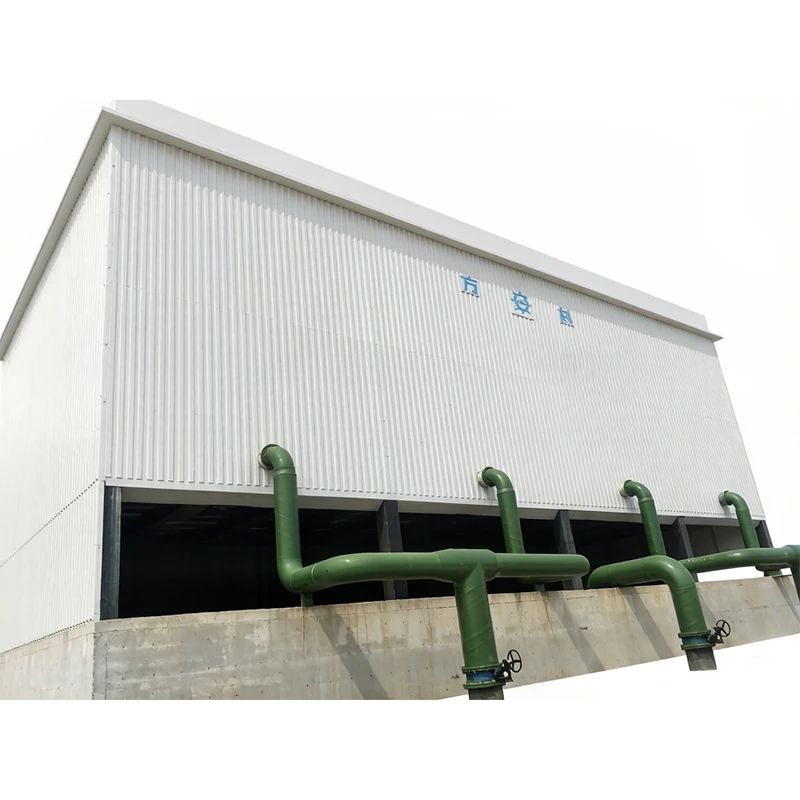

Qhob Counter Flow Industrial Cooling Ntauwd
Dej txias ntws: 1,000-6,000 m³ / h
Qhov Loj (Min): 8.8 m × 8.8 m × 9.9 m
Dimensions (Max): 21.6 m × 21.6 m × 20 m
Ntxuam Dia: 4.7-10.36 m
Lub zog kiv cua: 37-250 kW
Max Cua Flow: 4,200,000 m³ / h
Rau Cov Haujlwm Loj Tshaj Plaws Hauv Kev Lag Luam
Peb Lub Tuam Txhab Txhaum Cai Flow Industrial Cooling Ntauwd yog tsim los rau cov haujlwm txias txias. Nws tuaj yeem tsim rau ntawm - qhov chaw nrog cov pob zeb ua los yog sib sau ua ke siv precast panels. Tus pej thuam tuav dej ntws los ntawm 1,000 m³ / h mus rau 6,000 m³ / h, tshaj lub peev xwm ntawm cov hlau lossis FRP yees. Nws yog tsim rau nruab nrab kub (43℃/ 33 degree) thiab siab kub (60℃/ 35 degree) daim ntaub ntawv, ua rau nws zoo tagnrho rau refineries loj, roj nroj tsuag, thee chemical chaw, steel mills, thiab fais fab chaw nres tsheb. Cov qauv pob zeb muab qhov tshwj xeeb tiv thaiv cua thiab av qeeg, nrog rau kev tsim lub neej tshaj 30 xyoo.
Muaj-Qib Ntxuam thiab Iav Tsav
Lub kiv cua txoj kab uas hla yog li ntawm 4.7 m txog 10.36 m, nrog lub zog ntawm 37 kW txog 250 kW, tsim cov cua ntws mus txog 4,200,000 m³ / h. Gearboxes siv SKF lossis NSK bearings, nrog cov zis torque ntawm 129 N·m thiab 2,827 N·m. Tag nrho cov khoom siv hluav taws xob yog IP55- ntsuas nrog Class F rwb thaiv tsev. Ntxuam hniav yog ua los ntawm txhuas lossis FRP rau qhov sib npaug ntawm lub teeb yuag thiab lub zog. Lub iav- tsav tsheb tshem tawm txoj siv txoj siv sia, ua kom muaj kev ua haujlwm tsis tu ncua mus txog 8,000 teev hauv ib xyoos. Cov twj tso kua mis yog siv los ntawm lub cev muaj zog los ntawm 16 kW × 2 mus txog 90 kW × 2, muab cov dej tsis tu ncua txhua xyoo.
Pom zoo thiab kev txhawb nqa
Peb lub tuam txhab yog Jiangxi Gazelle Enterprise, Jiangxi Specialized thiab Innovative SME, thiab Ji'an Intellectual Property Demonstration Company. Rau yim xyoo sib law liag, peb tau txais qhov khoom plig "Keep Contract and Keep Promise", thiab hauv 2023, peb tau txais "Tax Credit Class A" designation. Lub Pob Zeb Counter Flow Industrial Cooling Tower sawv cev rau peb cov khoom lag luam. Thaum lub sijhawm tsim khoom, peb muab cov duab thiab cov yeeb yaj kiab kom koj tuaj yeem taug qab kev nce qib. Tom qab cov khoom xa tuaj, peb muab kev cob qhia, cov khoom siv tau yooj yim, thiab kev saib xyuas tej thaj chaw deb nrog rau thaum ntxov - ceeb toom muaj peev xwm los tiv thaiv koj qhov project loj -.
Khoom Specifications
|
Parameter |
Paub meej |
|
Dej Txias Dej |
1,000–6,000 m³/h |
|
Dimensions (Min) |
8.8 m × 8.8 m × 9.9 m |
|
Dimensions (Max) |
21.6 m × 21.6 m × 20 m |
|
Ntxuam Dia |
4.7–10.36 m |
|
Ntxuam Fais |
37-250 kW |
|
Max Cua Flow |
4,200,000 m³/h |
|
Tshuaj tsuag |
16 kW × 2 rau 90 kW × 2 |
|
Cov yeeb nkab loj |
DN300 × 2 rau DN600 × 3 |
|
Qhov hnyav ua haujlwm |
27,000–162,000 Kg |
|
Tsim Lub Neej |
30+ xyoo |
|
Kev tiv thaiv lub cev muaj zog |
IP55, Chav F |
|
Gearbox Bearings |
SKF lub NSK |
FAQ
